Electrocoating Systems Built for Efficiency: How Compact Coat II™ Reduces Cost and Footprint

Choosing the right electrocoating system is a critical decision for high-volume industrial manufacturers aiming to optimize finishing lines. For decades, companies have balanced durable corrosion resistance against high capital investments.  Furthermore, traditional configurations are traditionally sized to accommodate specific plant footprint and layout requirements.

KOCH Finishing Systems’ new Compact Coat II™ delivers maximum efficiency with a fractional footprint, helping you lower operational costs without sacrificing part quality.

.
123

Managing Footprint and Capacity in Electrocoating

Managing an industrial finishing line requires a constant balancing act between increasing throughput, maintaining coat quality, and managing physical plant constraints. High-capacity electrocoating systems are traditionally designed around comprehensive overhead conveyor configurations, which excel at handling large, continuous production volumes.

However, for operations managers in sectors like aerospace, automotive, and heavy construction, scaling up or modernizing equipment can become a challenge when plant square footage is fully utilized. Plant managers working within tight facility boundaries often navigate specific layout considerations:

  • Footprint Constraints: Traditional electrocoating configurations require a substantial, dedicated layout. When an existing facility lacks the square footage for a conventional setup, physical expansion or layout restructuring becomes necessary to capture new high-volume production opportunities.
  • Resource Optimization: While larger process tanks are highly efficient for massive, uniform production runs, running specialized or smaller part batches through an oversized system can lead to unnecessary utility and chemical overhead.

KOCH Finishing Systems’s Compact Coat II™ provides a specialized alternative engineered specifically for these footprint limitations. Designed to complement traditional configurations rather than replace them, this modular architecture allows manufacturers to scale production volume and handle varying part sizes efficiently within a highly compressed footprint.

.

Introducing the Compact Coat II™: Maximum Efficiency, Fractional Footprint

The Compact Coat II™ is a highly compressed electrocoating system designed to integrate premium finishing capabilities into tight production layouts. This enineered streamlined layout provides an adaptable solution. Moreover, it scales alongside your changing operation volumes. It utilizes an innovative design to optimize tight industrial spaces through a suite of advanced features.

The electrocoating system incorporates the following technical features:

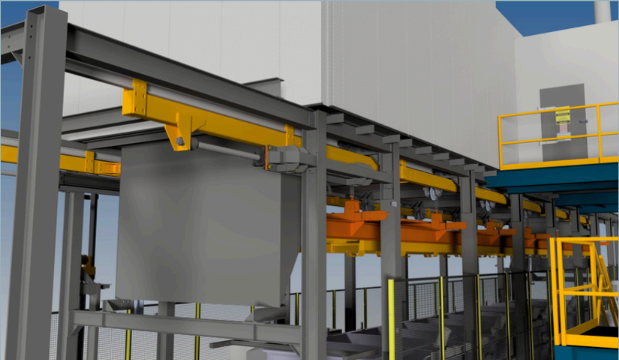

  • Dual-Frame Structural Design: The machine layout incorporates a heavy-duty dual-frame structure to maximize stability and streamline part movement within a minimal physical footprint.
  • Side-Mounted Hydraulic Cylinders: Vertical load movement is driven by side-mounted hydraulics that ensure quiet, exceptionally smooth lifting cycles and simplified routine maintenance.
  • Programmable Motion Control: The automated hoist mechanics program sequential vertical and horizontal indexing. As a result, the system can selectively skip specific process tanks based on recipe demands.
  • Automated Tilting Capabilities: Built-in programmable tilt functionality articulates the racks directly above the process tanks. This design facilitates rapid part drainage and minimizes chemical drag-out.
  • Heavy-Duty Component Supports: The entire lift and index axis relies on high-strength roller chains and rugged pillow block bearings. Ultimately, this durable build ensures a long operational lifespan under continuous industrial loads.

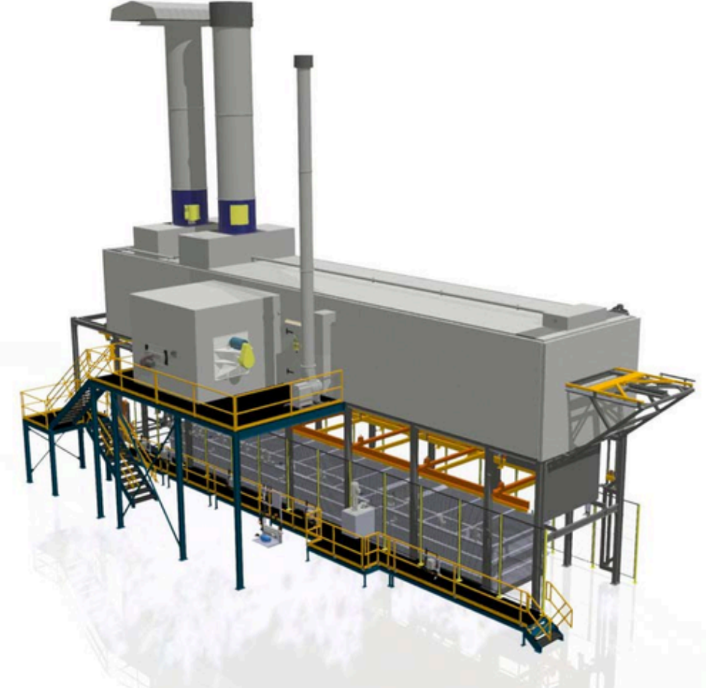

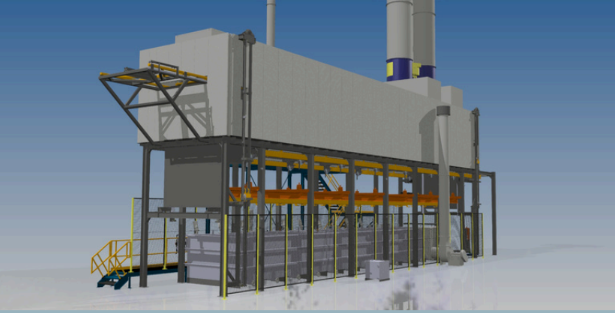

  • Top- or Side-Mounted Oven Configurations: The system layout allows for the flexible placement of the curing oven. Facilities can position it on the side or directly on top to match distinct facility layouts.
  • Modular Machine Structure: Built using pre-engineered modules, the equipment structure significantly accelerates on-site assembly timelines. In turn, these modules can be reconfigured easily to scale production capacity.
.

Bottom-Line Benefits of the Compact Coat II™ Electrocoating System

Investing in an advanced electrocoating system shouldn’t require straining your capital budget or overextending your operational overhead. By engineering full-scale capabilities into a compressed footprint, KOCH Finishing Systems ensures that high-volume finishing remains financially accessible and profitable. As a result, this design approach transforms spatial efficiency into measurable financial advantages across your entire manufacturing lifecycle.

Electrocoating systems streamline integrated operations and provide several key financial advantages for your facility:

  • Reduced Initial Capital Expense: The simplified, compact layout dramatically lowers your upfront machinery investment. Consequently, it paves the way for a much faster payback period and higher return on investment.
  • Decreased Daily Utility Costs: Operating within a smaller physical footprint significantly reduces energy consumption, process water requirements, and coating material waste.
  • Minimized Facility Real Estate Demands: The machinery occupies a fraction of the plant floor space required by conventional overhead systems. Thus, it frees up valuable square footage for other manufacturing processes.
  • Accelerated Installation Timelines: The engineered modular structure simplifies and shortens the on-site installation process, minimizing costly production downtime during setup.
  • Versatile Plant Layout Integration: Configuring curing ovens on either the top or side gives you total layout flexibility. As such, you can easily match your specific building constraints and ceiling heights.
  • Reduced Chemical Drag-Out and Waste: Programmable automated tilting allows parts to drain thoroughly directly above the process tanks, preserving expensive chemicals and ensuring pristine coat quality.
  • Long-Term Maintenance Savings: Utilizing easily accessible, maintenance friendly design keeps routine upkeep simple and inexpensive.
.

Future-Proof Your Finishing Line

Balancing high-volume manufacturing demands with strict spatial constraints requires a shift away from traditional, rigid machinery layout designs. The Compact Coat II™ by KOCH Finishing Systems proves that you can achieve full-scale electrocoating capabilities, reliable throughput, and exceptional quality within a highly compressed, efficient layout. By reducing initial capital expenses, minimizing resource consumption, and accelerating installation times, this innovative system directly protects your bottom line.

To optimize your plant floor and scale your production with an adaptable finishing solution, reach out to the engineering experts at KOCH Finishing Systems to discuss your needs.
